Model A1 truck scale

Model: A1

Unit: Sets

Unit price: $2500~20000/set

Min Order: 1 set

Delivery Date: within 15 days after receipt of deposit

A1 truck scale:
Quantity:
  • A1
  • YUBO
  • 84238990
Features:


1. 8mm chequer top plate, middle dissected structure

2. U shape beams in 30~35cm height, robust and economic.

3. General mounting height: 440mm; other special mounting height from
330mm~400mm can be customized according to your request.

4. Load cell access: from top (with a slip of top cover on the platform)

5. 3 units of 18m can be loaded in one 40' HQ.


Components:

1. Bridge load cell (ZEMIC or KELI)

2. Indicator: A9 or A9P(with
interprinter)

3. Junction box: stainless steel junction box with 15m cable

4. Other installation tools and accessories.





Other information about the truck scales:


Type of steel: Q235A,

Overload: For test the weighing bridge, the max load is 125% of full span, in this weighing range ,the  restorability of the scale body is not change, and in the range of 150% of full span, it is safe, and we use 60% of full span to calibrate the scale

Welding : We use gas shield welding as our weld type , it protects the scale body and improve the welding quality effectively

Painting:We sandblast the scale first, and then paint the truck scale with anti-rust primer as a base, with a thickness of 60um. Then we do two layers of acrylic acid grey painting in 40um thick. The whole thickness of the painting is 100-120um.



Structure:

QQ图片20161007145732


Installation and Application:

QQ图片20161007145831


Optional:

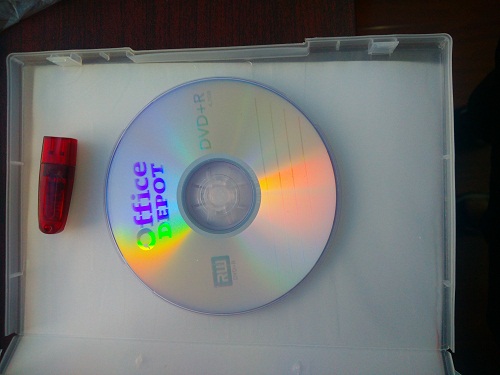

1.Controlling computer Software

IMG_20161009_151212

2. Large-screen Display (3 inch or 5 inch)

3'' screen ptx
